A34B-Z
The "A34B-Z" (Zero Emission) hydrogen engine is suitable for a wide range of power applications from automotive to aerospace. Axis A34B-Z hydrogen fueled engine is a super-turbo twin-screw, dual induction 2-cycle engine with a 3-Litre Capacity (Boxer engine); featuring over 1,000bhp at 4,500rpm, this engine platform is ideally suited to automotive propulsion and also for aviation/light aircraft applications, contact us for pricing and further information.

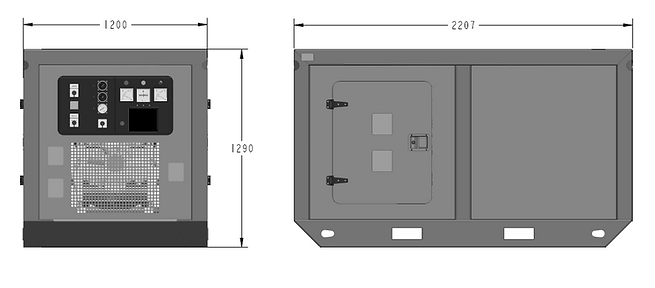

Dimensions:
Specifications:
-
Fuel Type: Grade 4.5 Hydrogen
​​
Fuel Connection Requirements:
​
-
Fuel delivery pressure (min): 10bar (1Mpa)
-
Fuel delivery pressure (max): 700bar (70Mpa)
* Fuel inlet pressure from H2 tank is regulated to 100bar, via integrated pressure regulator
-
Fuel Injection Pressure: 100bar (10Mpa)
-
Fuel min flow rate: 1scfm
Fuel/Amplifier pump power:
A34B-Z features an integrated Mech-hydraulic H2 pump - no external power is required.
-
Compression Ratio: 20:1
-
Firing Order: 1-2, 3-4
-
Rated Power: ~1,100Bhp @ 4,500rpm
-
Peak Torque: ~480Nm @ 2,500rpm
-
Oil Grade: Castrol Vectron 15W40 CK-4/NG
-
Lubrication System: Wet Sump
-
Exhaust System: Lucid-Manifold-CCR
-
Cooling System: Mechanical Water Pump/Intercooler/forced induction
-
Cubic Capacity: 3,002 cc
-
Alternator: 14Volt/65amp output from lucid turbines
-
Starter motor: 12v DC (optional 24v)
Note: engine comes complete with ECU, flywheel, starter, fuel inlet rail, fuel pressure regulator/amplifier, intercooler & CCR manifold.
​
Contact sales for more information on mounting or integration for your application.
APPLICATIONS
AUTOMOTIVE
AVIATION
MILITARY
